Interactive Example

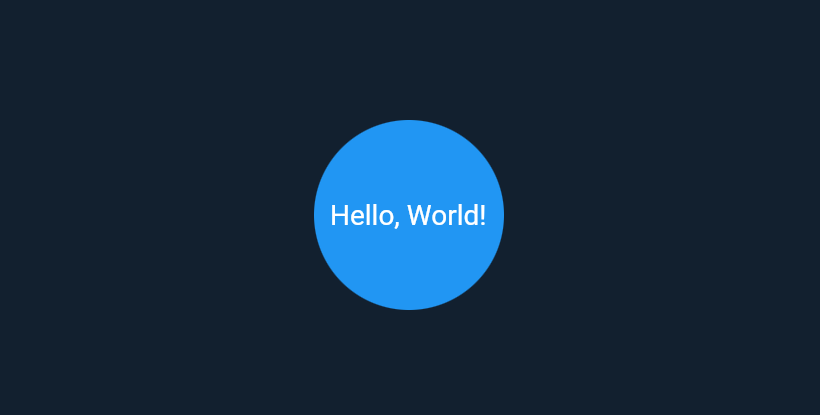

It takes a child (Hello, World!) and ensures the height equals the width, the custom RenderObject also animates opacity to show how Layers work.
The actual layout algorithm itself is quite simple, the annoying part is just the amount of boilerplate:
- Subclass LeafRenderObjectWidget, SingleChildRenderObjectWidget, or MultiChildRenderObjectWidget
- Implement createRenderObject / updateRenderObject to pass variables to your RenderObject
- Subclass RenderBox
- Mix in RenderObjectWithChildMixin, ContainerRenderObjectMixin, or SlottedContainerRenderObjectMixin
- Implement setters to check and call markNeedsPaint or markNeedsLayout
- Implement performLayout
- Implement paint
The original goal of Boxy was to boil this down into a simple, intuitive delegate class, sort of like a CustomPainter on steroids.
/// A container that sizes itself as a square depending on the largest dimension
/// of the child, centering it.
class Square extends SingleChildRenderObjectWidget {
final double opacity;
const Square({
Key? key,
required Widget? child,
this.opacity = 1.0,
}) : super(
key: key,
child: child,
);
@override
RenderObject createRenderObject(BuildContext context) =>
RenderSquare(opacity: opacity);
/// This function is called when a new widget instance
/// is provided from a rebuild.
@override
void updateRenderObject(BuildContext context, RenderSquare renderObject) {
renderObject.opacity = opacity;
}
}
class RenderSquare extends RenderBox
with RenderObjectWithChildMixin<RenderBox> {
RenderSquare({
double opacity = 1.0,
}) : _opacity = opacity;
double _opacity;
double get opacity => _opacity;
set opacity(double value) {
// Do an early return if the value is the same, this prevents
// any redundant repaints or relayouts.
//
// This kind of early return is actually one of the most
// important optimizations in the whole framework.
if (_opacity == value) return;
// Set the real opacity value.
_opacity = value;
// Here we tell notify the framework of changes to our
// configuration, in this case the update is purely visual
// so we call `markNeedsPaint`.
//
// If this property affects layout we would call
// `markNeedsLayout` instead, which does a relayout + repaint.
markNeedsPaint();
}
@override
void performLayout() {
if (child == null) {
// RenderObjects must have a size after layout, and that size
// be within the constraints provided to it.
//
// Since there is no child, just use the smallest allowed.
size = constraints.smallest;
} else {
// If a RenderObject has a child, it must be layed out at
// least once.
//
// The constraints parameter tells the child what the upper
// and lower bounds of its size can be, just like how we
// handle incoming constraints to RenderSquare. The child's
// size is forced to fit these constraints, even if it leads
// to overpainting or other layout problems.
//
// A child's size can only be used by us if it has been
// layed out AND parentUsesSize is true. In situations where
// our layout does not depend on the size of the child, the
// parentUsesSize argument can be false.
child!.layout(constraints, parentUsesSize: true);
// Now that the child has been layed out, we can grab its size.
final childSize = child!.size;
// Calculate the width of our square by taking the maximum of
// the child's width and height.
final width = max(childSize.width, childSize.height);
// Size ourselves to the closest size that still fits within
// the constraints given by our parent.
size = constraints.constrain(Size.square(width));
// Each RenderObject has a `parentData` field that is managed
// by its parent, this is initialized when the child is mounted
// with our `setupParentData` method. The default implementation
// for `RenderBox.setupParentData` initializes the child's
// parentData field with a BoxParentData.
//
// In this case, we use BoxParentData to give the child a
// paint offset, this offset can then read by other methods
// like `paint` and `applyPaintTransform`.
final parentData = child!.parentData as BoxParentData;
// Center the child vertically and horizontally into our size.
parentData.offset = Offset(
(size.width - childSize.width) / 2,
(size.height - childSize.height) / 2,
);
}
}
@override
void paint(PaintingContext context, Offset offset) {
if (child != null) {
// Paint always happens after the layout phase is complete,
// so we can safely access the parentData from before.
final parentData = child!.parentData as BoxParentData;
// Opacity layers use an 8 bit alpha, rather than a float.
//
// This function just clamps, scales, and rounds a 0 - 1
// opacity value to what the layer expects.
final alpha = Color.getAlphaFromOpacity(opacity);
// RenderObjects do not just paint to a canvas like you would
// expect from a low level graphics library, instead they build
// a tree of `Layer`s.
//
// Because many widgets do need a canvas to paint on, the
// `PaintingContext` interface provides a way for many objects
// to opportunistically share the same CanvasLayer, which stops
// recording when you push your own layer, e.g. OpacityLayer.
//
// The side effect of this opportunistic sharing is that the
// canvas it gives you must be restored before painting a child,
// and before you return from `paint`.
//
// These layers can contain external textures such as native
// views, they are also used as a way to efficiently update
// specific features without repainting e.g. simple offsets
// with OffsetLayer.
//
// This means in order to apply many paint effects to a child,
// we have to push a layer underneath it. In this case, we push
// an OpacityLayer.
context.pushOpacity(offset, alpha, (context, offset) {
// We call PaintingContext.paintChild to paint the child,
// you can paint a specific child either once or not at all
// per frame.
context.paintChild(child!, offset + parentData.offset);
});
}
}
/// Because our paint function pushes a layer during paint, we need
/// to set this to true.
///
/// Alternatively if the compositing is conditional, we could compute
/// that condition here and call `markNeedsCompositingBitsUpdate`
/// in set:opacity when it changes value.
///
/// See the implementation of `RenderOpacity` if you are still curious.
@override
bool get alwaysNeedsCompositing => true;
}
Check out the introduction to CustomBoxy next:
